In the huge and complex "heart" of the power system, relay protection devices play a crucial role of "patron saint" to ensure the stability and security of power supply. In order to keep these "patrons" in the best state at all times, efficient and reliable detection tools are indispensable. Today, let's talk about the "three-phase relay protection tester" to see how it can completely change the "blind test" status of power system operation and maintenance and get twice the result with half the effort.

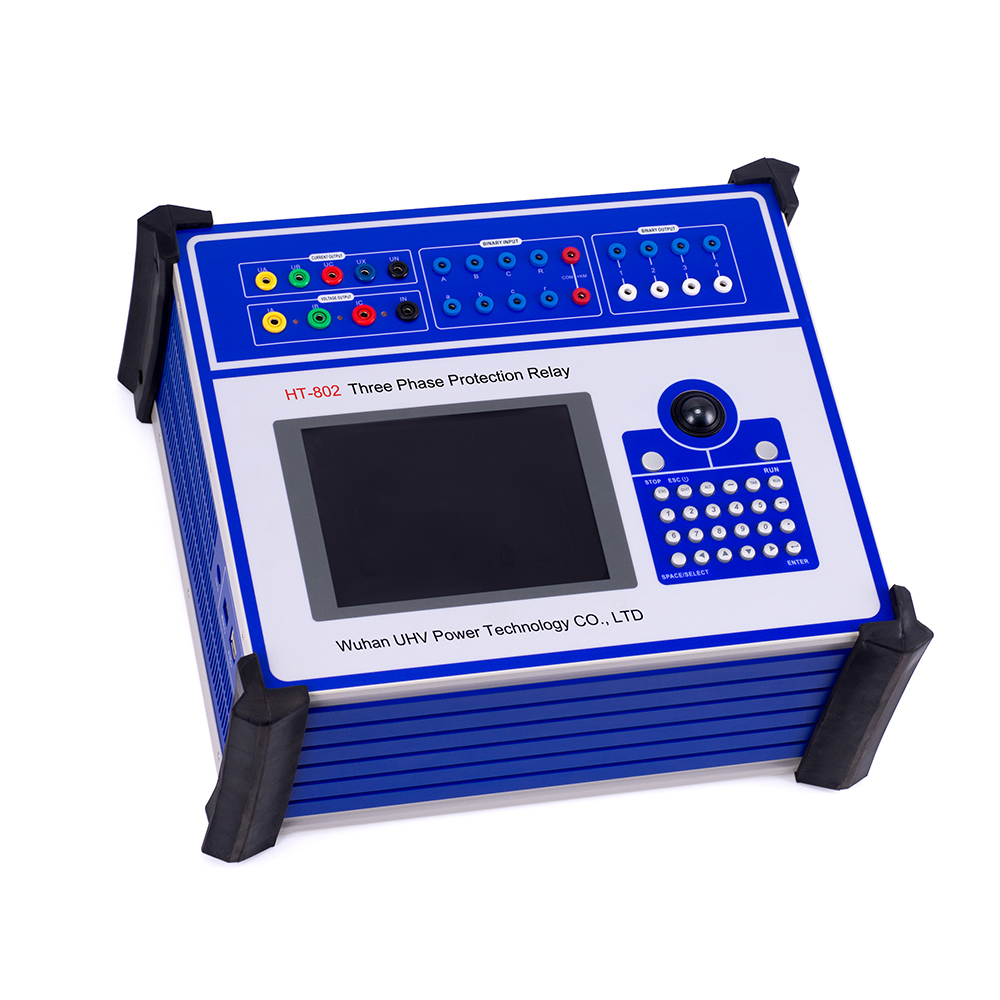

What is a three-phase relay protection tester?

In short, "three-phase relay protection tester" is a professional instrument specially used to detect and verify the performance of three-phase relay protection devices. It can simulate various complex power system operating conditions and input different current and voltage signals, so as to verify the action characteristics, sensitivity, selectivity, response speed and other key indicators of the protection device. Imagine that if the protection device "fails" at the critical moment, the consequences will be unimaginable. This tester is like a comprehensive physical examination for the "patron saint" to ensure that they can accurately give instructions at critical moments.

Factors affecting the accuracy of relay protection testing

To ensure the accuracy of the test, the ability of the "three-phase relay protection tester" itself is crucial, but there are also some other factors to consider:

Test environment: temperature, humidity, electromagnetic interference, etc. may affect the reading of the instrument and the performance of the protection device.

Professionalism of operators: Mastering the operation methods of instruments and a deep understanding of relay protection principles are the basis for obtaining accurate test results.

Scientific nature of the test method: only by selecting appropriate test items and test parameters can the real performance of the protection device be fully reflected.

Reliability of the protection device under test: if the device under test has faults, the test results will naturally be affected.

Wisdom crystallization of Wuhan UHV Power Technology Co., Ltd

Among many excellent power test equipment manufacturers, Wuhan UHV Power Technology Co., Ltd. has launched a number of three-phase relay protection testers with excellent performance by virtue of its profound technical accumulation and deep insight into the needs of the industry. These devices not only meet the diversified needs of users in terms of functions, but also perform well in terms of ease of use and stability, and truly "make the profession simple". The products of Wuhan UHV Power Technology Co., Ltd. can provide strong support in the face of complex power grid environment and the need for refined parameter calibration.

How to make better use of three-phase relay protection tester?

To maximize the value of "three-phase relay protection tester", we can start from the following aspects:

Proficient in operation and skills: thoroughly study the instrument instructions, participate in relevant training, and master the operation of various functions.

Standardize the test process: formulate standardized test procedures to ensure that each test has evidence to follow and the results are comparable.

Combined with the actual system conditions: during the test, try to simulate various fault scenarios that may occur in the actual power grid, so that the test results are more instructive.

Regular calibration and maintenance: ensure that the test instrument is in the best working condition, calibrate regularly, and deal with possible faults in time.

Using advanced technology: pay attention to the development of new technologies, such as intelligent communication, big data analysis, etc. integrating these technologies into relay protection testing can further improve efficiency and accuracy.

Who will compete: application scenario of three-phase relay protection tester

The "three-phase relay protection tester" has a very wide range of applications, covering almost all the occasions requiring the verification of relay protection devices:

Power plant: ensure the performance of protection devices for generator, transformer and other key equipment.

Substation: carry out comprehensive tests on all kinds of switches, lines, buses and other protective devices.

Transmission and distribution lines: check the accuracy and reliability of line protection.

Secondary equipment maintenance: as an important tool for daily maintenance and troubleshooting.

In depth interpretation: key technologies and linkages

The reason why the "three-phase relay protection tester" can accurately complete the task is inseparable from its built-in advanced technology. For example, the signal generator can accurately output AC/DC signals of various amplitudes and phase angles; The measurement unit can collect the input and output signals of the tested protection device in real time, and carry out accurate calculation and analysis; Microcomputer control makes the whole testing process automatic and intelligent, and greatly improves the efficiency.

It is closely related to the knowledge fields of "relay protection principle", "power system fault analysis" and "secondary circuit design". Only by deeply understanding these basic knowledge can we better understand and apply the "three-phase relay protection tester".

A sharp tool for improving work efficiency

By using the "three-phase relay protection tester", the power operation and maintenance personnel can:

Improve test efficiency: Automate the test process, reduce manual intervention, and shorten the test cycle.

Improve test accuracy: accurate signal simulation and data acquisition ensure the reliability of test results.

Reduce operation and maintenance costs: discover and handle potential problems of protection devices in time to avoid economic losses caused by faults.

Ensure the safe and stable operation of power grid: provide solid technical support for stable and reliable power supply.

Frequently asked questions (FAQs)

Q1: what is a three-phase relay protection tester?

A1: it is a professional instrument used to detect and verify the performance of three-phase relay protection device, which can simulate various operating conditions and verify the action characteristics of the protection device.

Q2: why choose the products of Wuhan UHV Power Technology Co., Ltd?

A2: Wuhan UHV Power Technology Co., Ltd. has rich experience and technical strength in the field of power testing. Its products are stable in performance, powerful in function, easy to operate, and can meet various complex testing requirements.

Q3: what are the main application scenarios of the three-phase relay protection tester?

A3: it is widely used in the detection and maintenance of relay protection devices in power plants, substations, transmission and distribution lines, as well as the troubleshooting of secondary equipment.

Q4: what knowledge is required to operate the three-phase relay protection tester?

A4: it is required to master basic knowledge of power system, relay protection principle, and the operation methods of instruments and relevant test procedures.

Q5: how to ensure the accuracy and reliability of the test results of the three-phase relay protection tester?

A5: ensure that the test environment is appropriate, the operator is professional, the test method is scientific, and the instrument is calibrated and maintained regularly.
