Product Introduction

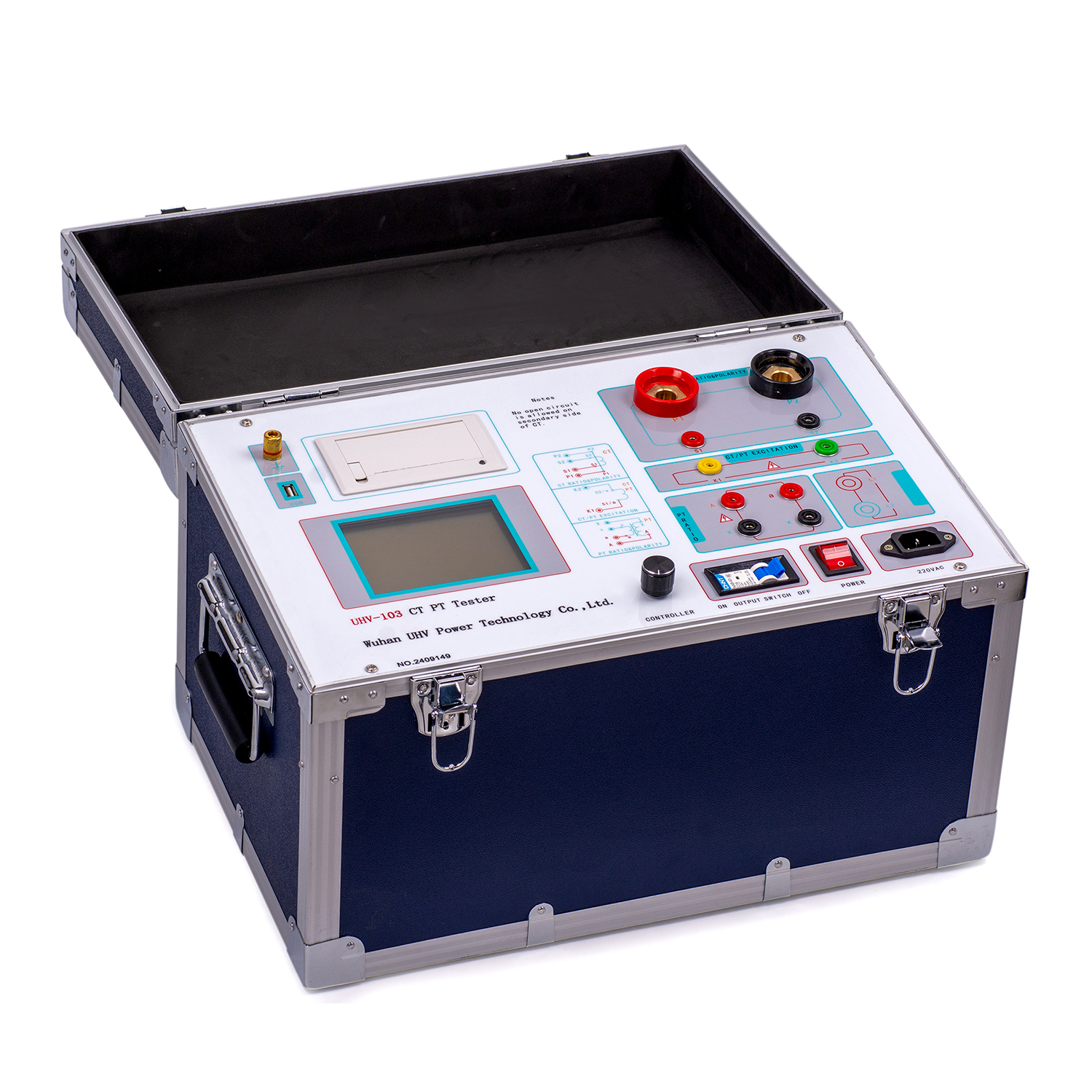

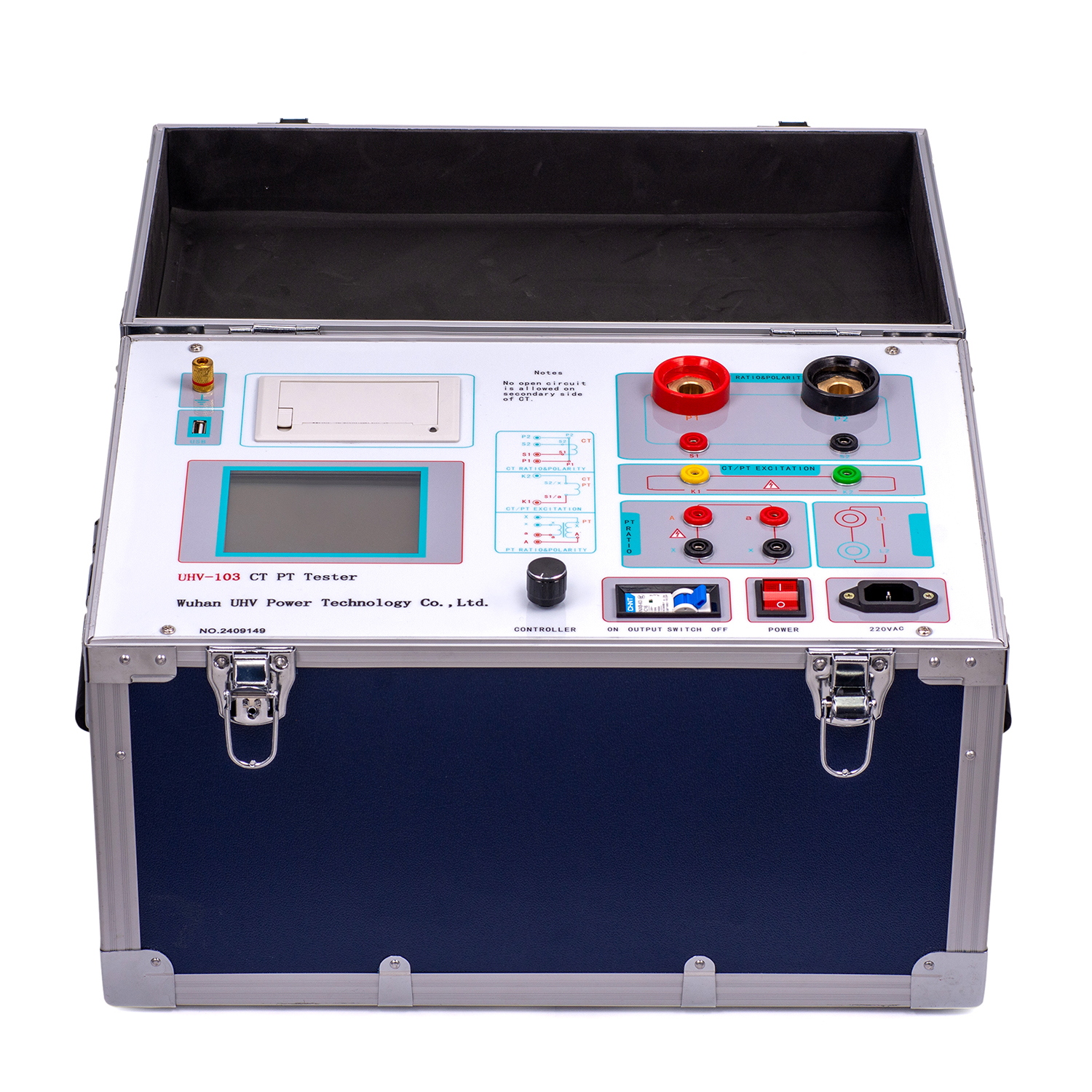

The CT PT Tester is primarily designed for field testing of Protection Class (P Class) CTs and PTs. Key test functions include excitation characteristics, transformation ratio, polarity, demagnetization (Degauss), 5% and 10% error curves, secondary circuit verification, power frequency AC withstand voltage tests, and secondary burden measurement.
The instrument features an LCD interface and a built-in miniature printer for immediate on-site reporting. It also supports data export via USB flash drive for further analysis and reporting on a PC, ensuring straightforward and convenient operation.
Function Table
| I. Current Transformer (CT) | II. Voltage Transformer (PT) |
| 1. Magnetization Curve | 1. Excitation Characteristic Test |
| 2. Transformation Ratio Test | 2. Transformation Ratio Test |
| 3. Polarity | 3. Polarity |
| 4. 5％ and 10％ error curve | 4. Withstand Test of Power Frequency |
| 5. Current Injecting | 5. Degauss |
| 6. Degauss | 6. Calculation of Knee Point Value |
| 7. Withstand Test of Power Frequency Alternating Current | |
| 8. Automatic Calculation of Excitation Knee Point Value |
Teknik Parametre Tablosu
| Başlıca Teknik Parametreler | |
| Operational Power Supply | AC220V±20V, 50～60Hz |
| Equipment Power Supply Output Waveform | Sinüs dalgası |
| Single Machine Output Voltage of Excitation Characteristic | 0~1200V |
| Excitation Output Current Set | 0~20A |
| Single Machine Output Current of Transformation Ratio Test | 0~600A |
| CT ratio measurement range | 5~25000A/5A(5000A/1A) |
| PT ratio measurement range | 1～500KV |
| Hata | ≤0.5%(0.2%*Reading+0.3%*Range) |
| Çalışma sıcaklığı | -10℃~+40℃ |
| Bağıl nem | <90RH% |
| Rakım | ≤1000m |
| Overall Dimension(Length*Width*Height) | 450*280*260(mm) |
| Ağırlık | ≤30Kg |
