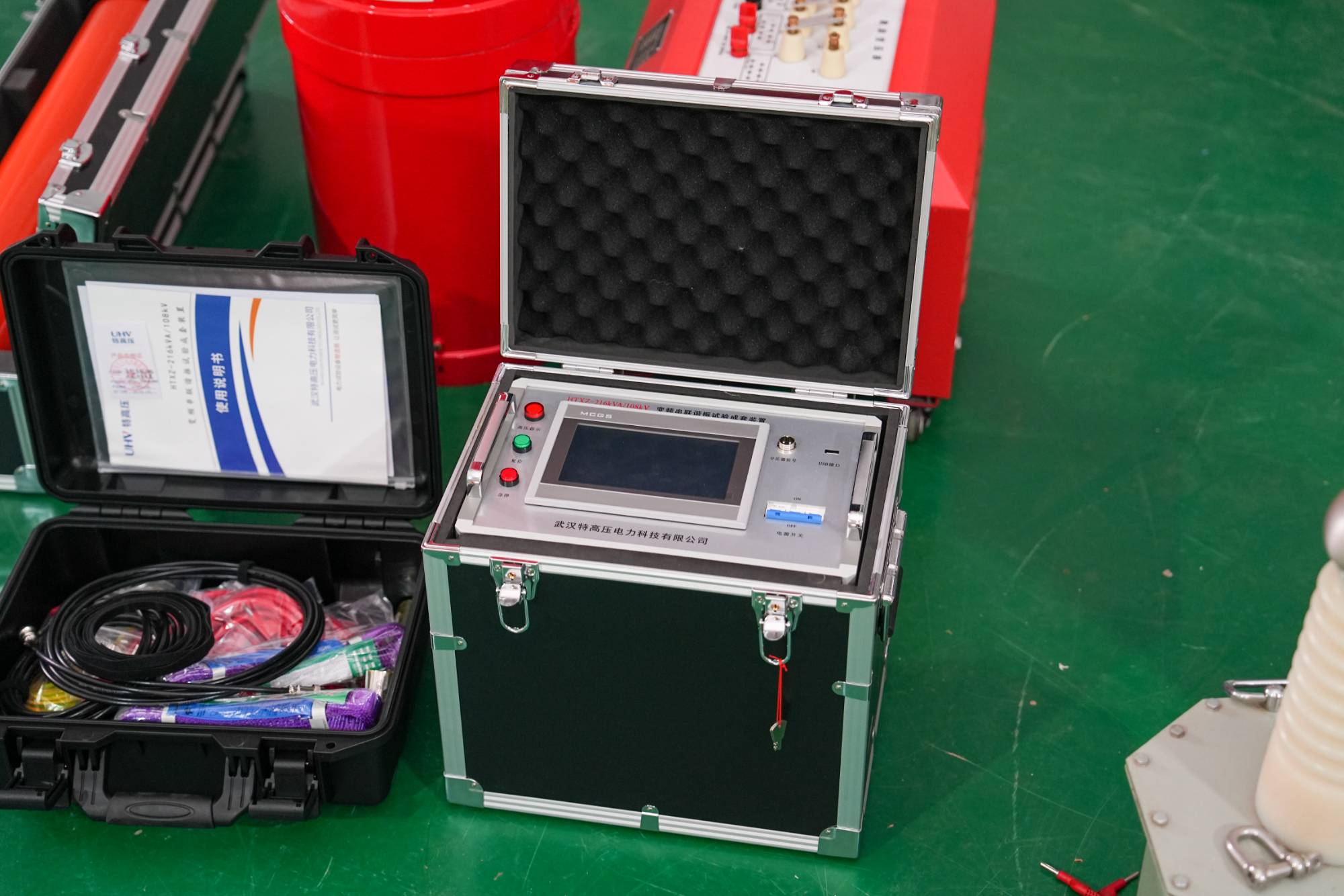

Series resonance testing equipmentis widely used in cable withstand voltage testing, which can meet the testing requirements of cable handover testing and preventive testing, and has a small testing capacity. So what should be noted when using aseriesresonance test devicefor AC withstand voltage testing of high-voltage cross-linked cables?

1. We can only conduct analysis tests after the cables to be tested have been installed in place and meet the development requirements for operation.

2. The core wire of the test phase should be connected to a high voltage source, and the shielding layer of the test phase, non test phase core wire, and non test phase shielding layer should all be grounded. After confirming that the information is correct, the test can begin.

3. The overvoltage protector of the cable shielding layer is short circuited, and the corresponding end cable metal shielding layer or metal sleeve is temporarily grounded.

4. If the cable head is directly connected to the GIS, the GIS should meet the operating conditions, and the Pt and lightning arrester inside the GIS should be disconnected during the test.

5. If the cable head is installed on a tower, the shielding layer of the cable and the non test phase are connected to the ground, and the tower cannot replace the ground wire. Special ground wires must be connected to the frequency conversion resonance system.

Mastering the precautions in the cable withstand voltage test of the series resonance test device can help us better perform the cable withstand voltage test, ensure the correct use of the instrument, and avoid damage to the instrument caused by non-standard operation.
